安科瑞交流電表在保加利亞光伏系統中的應用
時間： 2021-09-16 12:14 發布人：admin

  摘要：本文介紹了安科瑞APM系列交流電表在保加利亞光伏系統交流側的應用。主要用于光伏系統中的電流的計量，配合互感器對電路系統進行計量、通訊和控制等。

  Abstract: This paper introduces the application of ackry APM series AC meter in the AC side of Bulgarian photovoltaic system. It is mainly used to measure the current in the photovoltaic system, and cooperate with the transformers to measure, communicate and control the circuit system.

  1.項目概述Project Overview

  該公司位于保加利亞，公司主要在保加利亞及周邊國家從事小型光伏發電中心項目的設計/安裝施工/維護等業務?？蛻?hù)想要使用交流電表APM801、APM810等和互感器，用于光伏系統交流側電流電壓的監測計量、通訊以及利用APM電表的開關量功能進行控制。

  The company is located in Bulgaria. The company is mainly engaged in the design / installation, construction / maintenance of small photovoltaic power generation center projects in Bulgaria and surrounding countries. The customer wants to use AC meters apm801, apm810 and mutual inductors for monitoring, metering and communication of current and voltage at the AC side of photovoltaic system, and control by using the switching value function of APM meter.

  2.APM系列儀表簡介APM Series Energy Meters

  ACREL的APM系列功率表是根據IEC標準設計并與國際先進技術同步的功率表。

  APM系列電能表具有全功率測量、電能統計、電能質量分析和網絡(luò )通信等功能，主要用于供電網絡(luò )質量的綜合監測。

  本系列儀表采用模塊化設計，具有豐富的外部DI/DO模塊、AI/AO模塊、帶T-Flash（TF）卡的事件記錄（SOE）模塊、網絡(luò )通信模塊、溫濕度測量模塊功能，可實現電路全功率測量和開關狀態監測，具有以太網接口的雙RS485可實現RS485主站的數據拷貝，無需進行數據交換。PROFIBUS-DP接口可實現高速數據傳輸和聯網功能。

  APM series power meters of ACREL are power meters that are designed according to IEC standards and synchronized with international advanced technology.

  APM series meters have full power measurement, energy statistics, analysis of power quality and network communications and other functions, are mainly used for comprehensive monitoring of the quality of power supply network.

  This series of meters use a modular design, with a rich function of the external DI / DO module, AI / AO module, event recording (SOE) module with T-Flash (TF) card, network communication module, Temperature and humidity measurement module, can achieve full power measurement of electrical circuit and monitoring of switch status, Dual RS485 with Ethernet interface can realize data copying of RS485 master station, eliminating the need for data switching exchange. PROFIBUS-DP interface can realize high-speed data transmission and networking function.

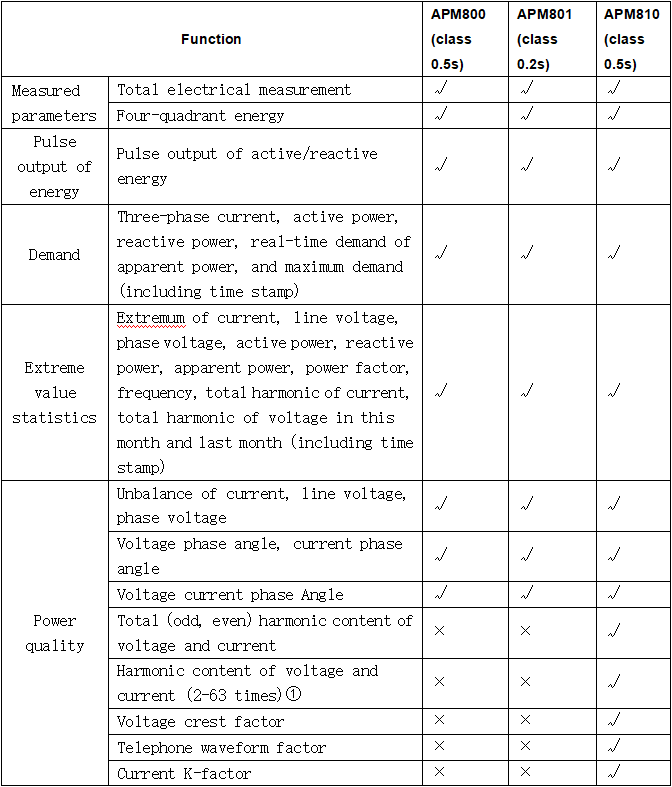

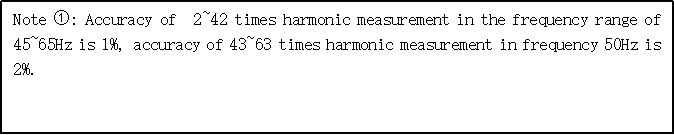

  3.型號及功能介紹Type and Function Description

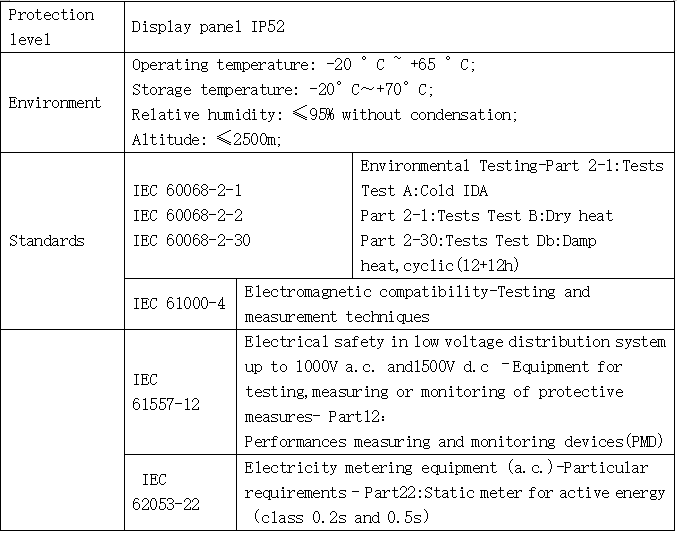

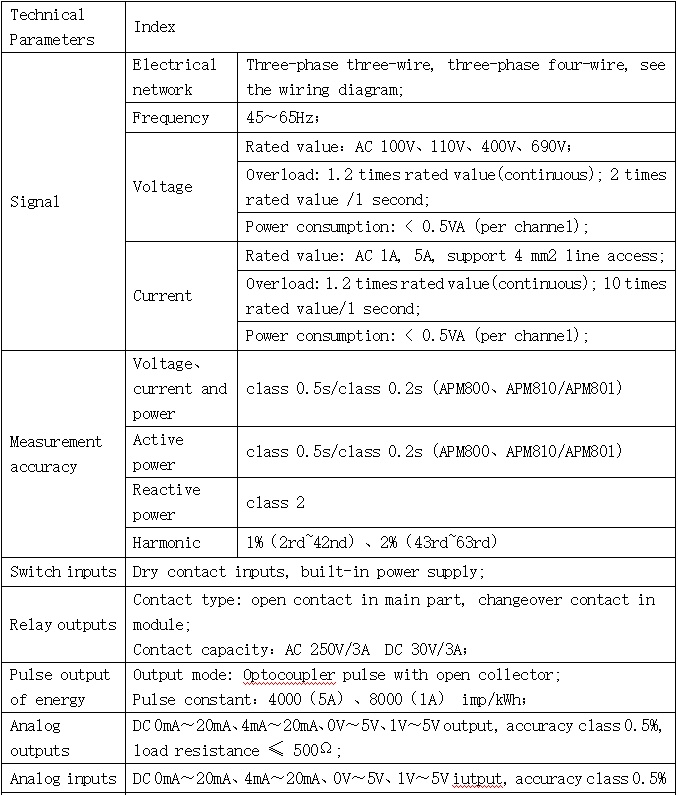

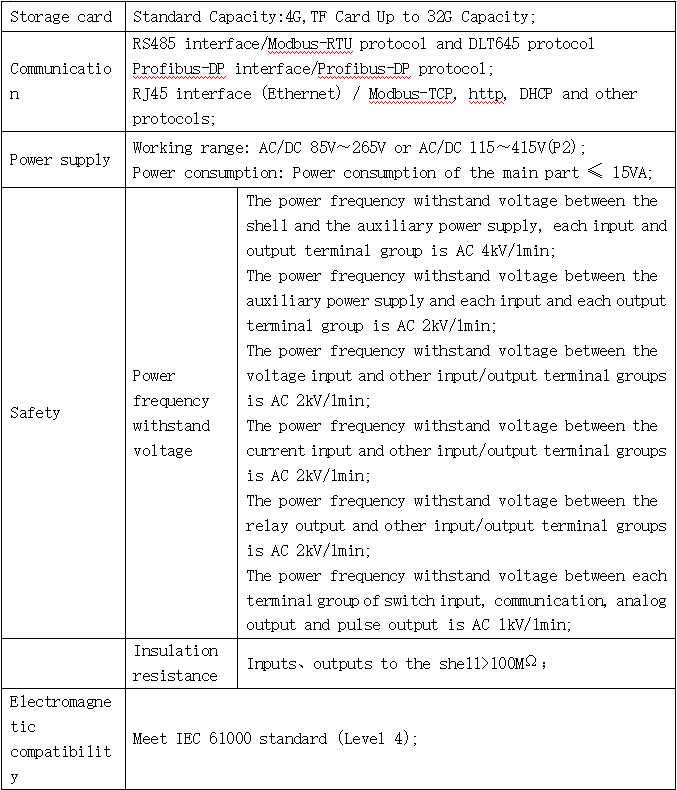

4. 技術參數Technical parameters

  5.客戶特殊需求  Requirements from Customer

  電網供應商要求：

  (1) 監控電壓：L1-N、L2-N、L3-N。非標稱 = 230V

  (2) 過壓時切換繼電器輸出。分為兩步，

  第 1 步：110% 非標稱或 253V - 延遲 60 秒；

  第2步，115% 的非標稱或 264V - 延遲 0.1s；設置范圍： U：非標稱的 100-140%，未列出步驟，可能是 1V 或 1%；延遲0.05s 到 60s，未列出步驟，可能 1s；

  (3) 欠壓時切換繼電器輸出：

  第1步；非標稱電壓或 184V 的 80% - 延遲 0.2s；設置范圍： U：非標稱電壓的 10-100%，未列出步驟，可能是 1V 或 1%；延遲0.05 s 到 3s，步驟未列出，可能為 1s；

  (4) 過頻時切換繼電器輸出：

  第1步； 50.5Hz——延遲0.1s；設置范圍：F：50-52.5Hz，step 0.1Hz；延遲

  (5) 超頻時切換繼電器輸出

  (6) 恢復延遲。由于先前的一些原因，當DO打開時，在網格參數回到標稱范圍后應該有時間延遲。時間范圍1-60秒，step 1秒

  (7) 附加設置。(如果可能的話)。

  7.1.當非標稱值低于60-70% 時，可禁用低頻和超頻監測;

  7.2. 當發生超頻/低頻時 -- DO不應該自動恢復，它應該等待手動/遠程等方式恢復。

  terms of reference from grid supplier:

  （1）monitoring voltages: L1-N, L2-N, L3-N. Unominal = 230V;

  （2）switching relay output at overvoltage: 2 steps:

  Step 1: 110% of Unominal or 253V - delay 60 seconds (s) ;

  Step 2: 115% of Unominal or 264V - delay 0.1s;

  （3）switching relay output at undervoltage:

  1-step; 80% of Unominal or 184V - delay 0.2s; Range of settings: U: 10-100% of Unominal, step not listed, maybe 1V ot 1%; Delay: 0.05 s to 3s, step - not listed, maybe 1s;

  （4）switching relay output at overfrequency

  1-step; 50.5Hz - delay 0.1s; Range of settings: F: 50-52.5Hz, step 0.1Hz; Delay: 0.1-0.5s, step - maybe 0.1s;

  （5）switching relay output at overfrequency

  1- step; 47.5Hz - delay 0.1s; Range of settings: F: 47.5-50Hz, step 0.1Hz; Delay: 0.1-0.5s, step - maybe 0.1s;

  （6）Delay for recovering. When DO is on by some of previous reasons, there should be time delay after grid parameter(s) are back in nominal range(s). Time range 1-60s, step 1s

  （7）Additional settings. (If they are possible).

  7.1 When Unominal is lower than 60-70%, under and overfrequency monitoring can be disabled

  7.2 When overfrequency/underfrequency is happened - the DO should not be recovered automatically, it should wait for some kind of manual/remote restore.

  上述7點為客戶對所采購產品的特殊需求，除第七點中部分要求不能滿足客戶外，其余需求都能滿足?；就旰媒鉀Q了客戶的需求。

  The above 7 items are the special needs of customers for the purchased products. Except that some requirements in point 7 cannot meet the needs of customers, other needs can be met. Basically solved the needs of customers.

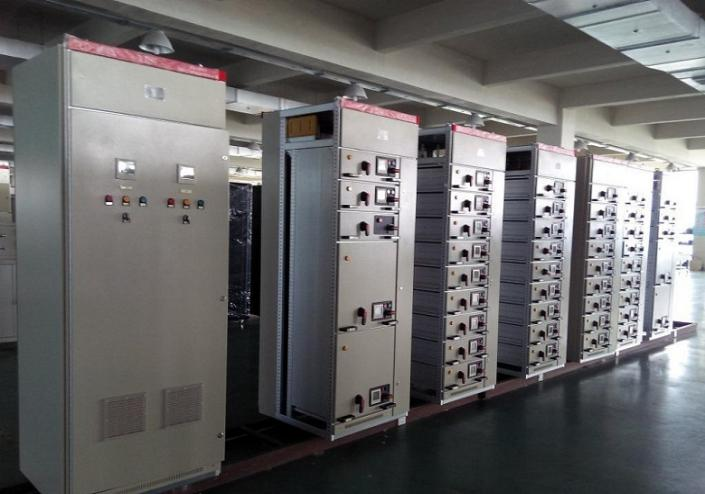

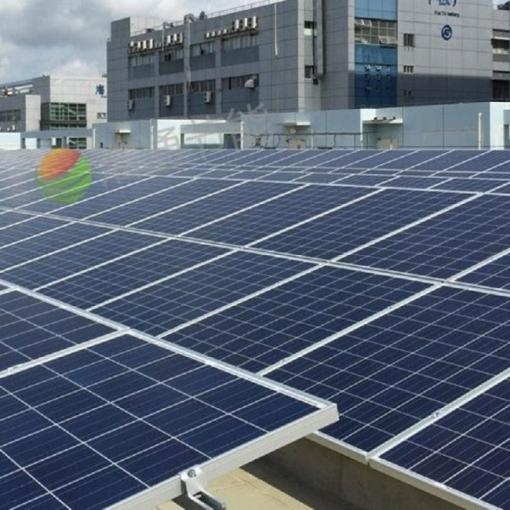

  6.安裝圖片Installation Picture
